About MeshMapper

MeshMapper Logo

MeshMapper visualizes real-world MeshCore coverage using data collected by local mesh operators.

Built with contributions by the community of
The Greater Ottawa Mesh Radio Enthusiasts.

MeshMapper Developers
CSP-Tom
MrAlders0n
If you would like to onboard your region with MeshMapper, please contact CSP-Tom or MrAldersOn on Discord
Map Engine: Leaflet • Topography: OpenTopoMap
Geocoding: Nominatim • Map Data: © OpenStreetMap
×

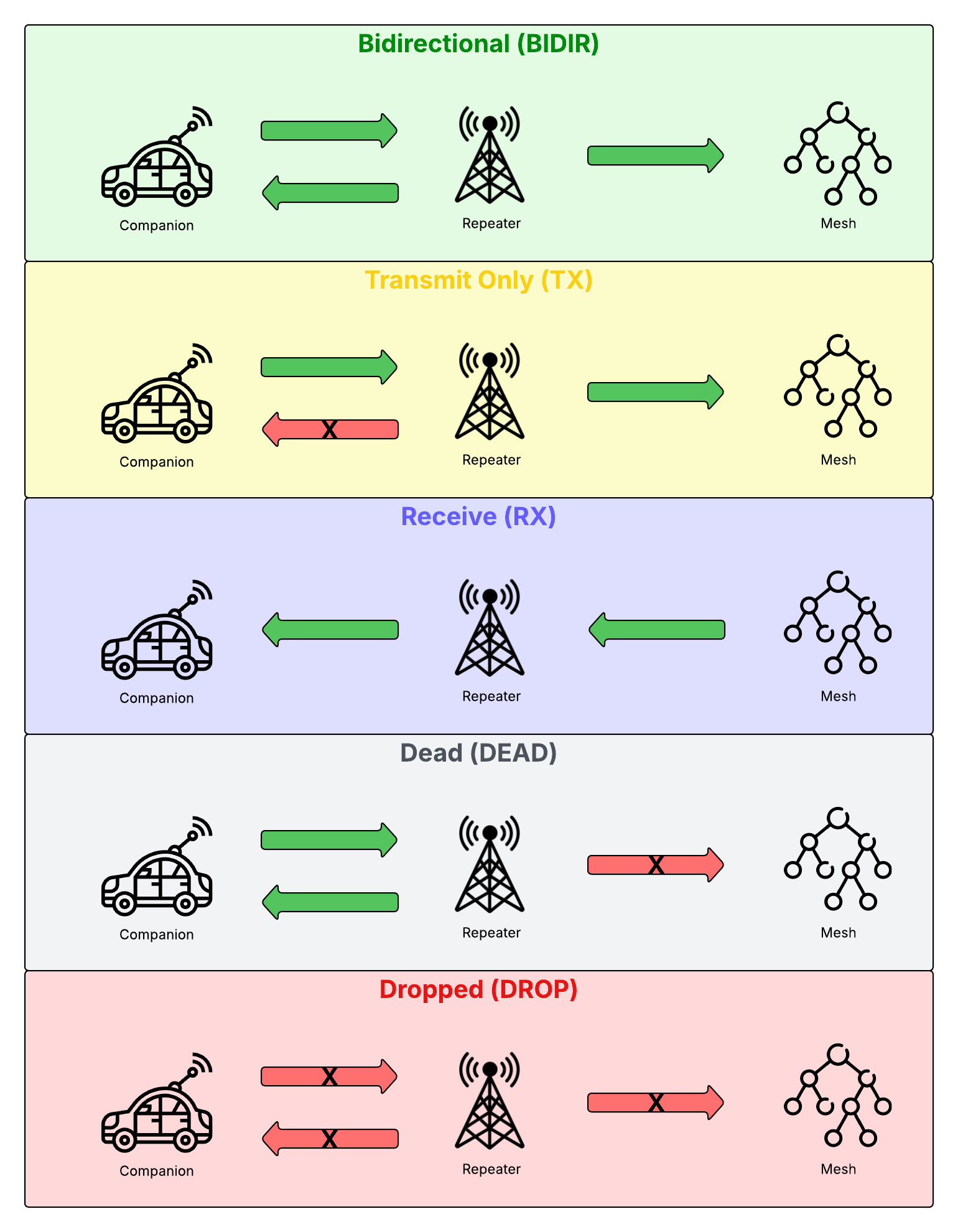

Coverage Status Definitions

Open Diagram
BIDIRECTIONAL (BIDIR)Heard repeats from the mesh AND successfully routed through it.
TRANSMIT (TX)Successfully routed through, but no repeats heard back.
RECEIVE (RX)Heard mesh traffic but did not transmit.
DEADRepeater heard it, but no other radio received the repeat.
DROPNo repeats heard AND no successful route.
×

Status Flow Diagram

Coverage Status Diagram
